Ionflux::Tools::GlibMultiplexer Class Reference
[I/O Multiplexing]

Glib based IO event multiplexer. More...

#include <GlibMultiplexer.hpp>

Inheritance diagram for Ionflux::Tools::GlibMultiplexer:

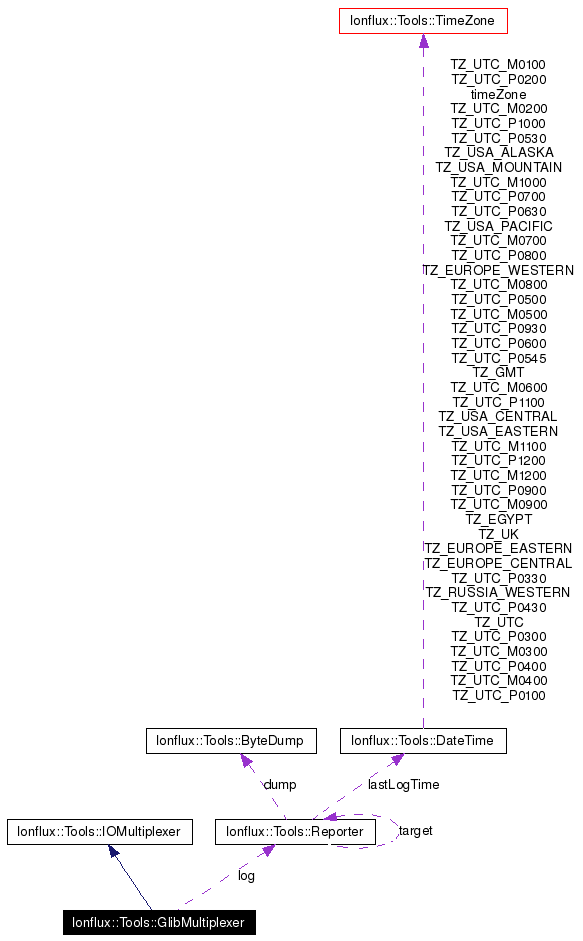

[legend]Collaboration diagram for Ionflux::Tools::GlibMultiplexer:

[legend]List of all members.

Public Member Functions
	GlibMultiplexer ()
	Constructor.
	GlibMultiplexer (int initArgc, char **initArgv)
	Constructor.
	GlibMultiplexer (int initArgc, char **initArgv, Gtk::Window *initMainWin)
	Constructor.
virtual	~GlibMultiplexer ()
	Destructor.
virtual void	registerEvent (IOHandler *handler, IOEvent event)
	Register IO event.
virtual void	removeEvent (IOHandler *handler, IOEvent event)
	Remove IO event.
virtual bool	processEvent (GlibIOEventInfo *eventInfo, Glib::IOCondition ioCond)
	Process IO event.
virtual void	run ()
	Main loop.
virtual void	quit ()
	Exit main loop.
virtual bool	isRunning ()
	Get running state.
virtual void	runHandler ()
	Run handler.
virtual bool	quitHandler ()
	Quit handler.
virtual Reporter &	getLog ()
	Get Console output/logging facility.
virtual void	setMainWindow (Gtk::Window *newMainWindow)
	Set application main window.
virtual Gtk::Window *	getMainWindow ()
	Get application main window.
Static Public Member Functions
static void	shutdownHandler (int signum)
	Shutdown handler.
Protected Member Functions
virtual void	clearEvent (GlibIOEventInfo *eventInfo)
	Clear IO event.
virtual void	clearEvents ()
	Clear IO events.
virtual void	addEvent (GlibIOEventInfo *eventInfo)
	Add IO event.
virtual void	addEvents ()
	Add IO events.
Protected Attributes
Ionflux::Tools::Reporter	log
	Console output/logging.
std::vector< GlibIOEventInfo * >	events
	Vector of registered IO events.
std::vector< GlibIOEventInfo * >	trash
	Vector of IO events to be removed.
std::vector< GlibIOEventInfo * >	newEvents
	Vector of IO events to be added.
bool	running
	Main loop flag.
Gtk::Main *	kit
	Gtk Main object.
int	argc
	Argument count.
char **	argv
	Argument vector.
Gtk::Window *	mainWindow
	Application main window.
Static Protected Attributes
static sig_atomic_t	shutdown = 0
	Shutdown flag.

---

Detailed Description

Glib based IO event multiplexer.

A multiplexer for IO events. If a specified event is ready to be processed, the IO multiplexer notifies the associated IO handler. For example, an IOHandler may be called if a file descriptor is ready for reading.

To register an event, you set a file descriptor and a mask of event types which the IO handler should be notified of. You then call IOMultiplexer::registerEvent() with a pointer to an IOHandler and the event object. To remove (unregister) an event, call IOMultiplexer::removeEvent() with the same handler and event object.

Note:

The GlibMultiplexer uses Glib signals as its underlying IO multiplexing facility.

---

Constructor & Destructor Documentation

Ionflux::Tools::GlibMultiplexer::GlibMultiplexer (   )

Constructor. Construct new GlibMultiplexer object.

Ionflux::Tools::GlibMultiplexer::GlibMultiplexer (  int  initArgc, char **  initArgv )

Constructor. Construct new GlibMultiplexer object. Parameters: initArgc  Argument count. initArgv  Argument vector.

Ionflux::Tools::GlibMultiplexer::GlibMultiplexer (  int  initArgc, char **  initArgv, Gtk::Window *  initMainWin )

Constructor. Construct new GlibMultiplexer object. Parameters: initArgc  Argument count. initArgv  Argument vector. initMainWin  Application main window.

Ionflux::Tools::GlibMultiplexer::~GlibMultiplexer (   )  [virtual]

Destructor. Destruct GlibMultiplexer object.

---

Member Function Documentation

void Ionflux::Tools::GlibMultiplexer::addEvent (  GlibIOEventInfo *  eventInfo  )  [protected, virtual]

Add IO event. Adds an event to the vector of registered events. Parameters: eventInfo  Event to be added.

void Ionflux::Tools::GlibMultiplexer::addEvents (   )  [protected, virtual]

Add IO events. Adds events flagged for addition to the vector of registered events.

void Ionflux::Tools::GlibMultiplexer::clearEvent (  GlibIOEventInfo *  eventInfo  )  [protected, virtual]

Clear IO event. Removes an event from the vector of registered events. Parameters: eventInfo  Event to be removed.

void Ionflux::Tools::GlibMultiplexer::clearEvents (   )  [protected, virtual]

Clear IO events. Removes events flagged for removal from from the vector of registered events.

Reporter & Ionflux::Tools::GlibMultiplexer::getLog (   )  [virtual]

Get Console output/logging facility. The console output/logging facility used by this object Implements Ionflux::Tools::IOMultiplexer.

Gtk::Window * Ionflux::Tools::GlibMultiplexer::getMainWindow (   )  [virtual]

Get application main window. return Current value of application main window.

bool Ionflux::Tools::GlibMultiplexer::isRunning (   )  [virtual]

Get running state. Returns: true if the main loop is running, false otherwise. Implements Ionflux::Tools::IOMultiplexer.

bool Ionflux::Tools::GlibMultiplexer::processEvent (  GlibIOEventInfo *  eventInfo, Glib::IOCondition  ioCond )  [virtual]

Process IO event. Processes the event referenced by the specified IO event record. Note: This is used by GlibIOEventInfo to propagate event signals. You should not have to use this in any other way. Parameters: eventInfo  IO event record. ioCond  IO condition. Returns: true on success, false otherwise.

void Ionflux::Tools::GlibMultiplexer::quit (   )  [virtual]

Exit main loop. Call this function to exit from the main loop. Implements Ionflux::Tools::IOMultiplexer.

bool Ionflux::Tools::GlibMultiplexer::quitHandler (   )  [virtual]

Quit handler. Event handler for 'quit' signals. Returns: true on success, false otherwise.

void Ionflux::Tools::GlibMultiplexer::registerEvent (  IOHandler *  handler, IOEvent  event )  [virtual]

Register IO event. Register an IO event to be handled by the multiplexer. Parameters: handler  IO handler to be notified if the event occurs. event  IO event. Implements Ionflux::Tools::IOMultiplexer.

void Ionflux::Tools::GlibMultiplexer::removeEvent (  IOHandler *  handler, IOEvent  event )  [virtual]

Remove IO event. Remove an IO event from the set of events handled by the multiplexer. Parameters: handler  IO handler for which the event has been registered. event  IO event. Implements Ionflux::Tools::IOMultiplexer.

void Ionflux::Tools::GlibMultiplexer::run (   )  [virtual]

Main loop. Start the main loop to watch for registered events. Implements Ionflux::Tools::IOMultiplexer.

void Ionflux::Tools::GlibMultiplexer::runHandler (   )  [virtual]

Run handler. Event handler for 'run' signals. Returns: true on success, false otherwise.

void Ionflux::Tools::GlibMultiplexer::setMainWindow (  Gtk::Window *  newMainWindow  )  [virtual]

Set application main window. Set new value of application main window. Parameters: newMainWindow  New value of application main window.

void Ionflux::Tools::GlibMultiplexer::shutdownHandler (  int  signum  )  [static]

Shutdown handler. Signal handler for signals that will cause the main loop to exit. Parameters: signum  Signal. Reimplemented from Ionflux::Tools::IOMultiplexer.

---

Member Data Documentation

int Ionflux::Tools::GlibMultiplexer::argc [protected]

Argument count.

char** Ionflux::Tools::GlibMultiplexer::argv [protected]

Argument vector.

std::vector<GlibIOEventInfo *> Ionflux::Tools::GlibMultiplexer::events [protected]

Vector of registered IO events.

Gtk::Main* Ionflux::Tools::GlibMultiplexer::kit [protected]

Gtk Main object.

Ionflux::Tools::Reporter Ionflux::Tools::GlibMultiplexer::log [protected]

Console output/logging.

Gtk::Window* Ionflux::Tools::GlibMultiplexer::mainWindow [protected]

Application main window.

std::vector<GlibIOEventInfo *> Ionflux::Tools::GlibMultiplexer::newEvents [protected]

Vector of IO events to be added.

bool Ionflux::Tools::GlibMultiplexer::running [protected]

Main loop flag.

sig_atomic_t Ionflux::Tools::GlibMultiplexer::shutdown = 0 [static, protected]

Shutdown flag.

std::vector<GlibIOEventInfo *> Ionflux::Tools::GlibMultiplexer::trash [protected]

Vector of IO events to be removed.

---

The documentation for this class was generated from the following files:

• GlibMultiplexer.hpp
• GlibMultiplexer.cpp

---
